Series Features |
- Solid State Charger
- Dual Voltage Transformer for
120/277 VAC Operation
- Maximum Input Rating
120VAC, 60 Hz, 4.0 Watt
277VAC, 60 Hz, 4.0 Watt
|
An affordable alternative to conventional
emergency lighting, the EFB Series is a fluorescent ballast which enhances existing AC
fixtures by illuminating 1 or 2 lamps during a power failure. |
| |

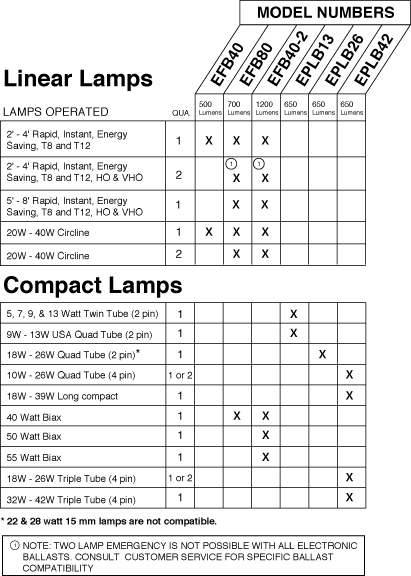

- For Use on Single or Double Lamps
- Illuminates Rapid Start, Instant Start, High Output, Slimline,
Circline, U-Shaped, or Compact Lamps.
|
- Sealed Nickel Cadmium Battery
- Maintenance Free
|
| |
- Compact Steel Housing
- Convenient Length Lead Wires
- Red (Power On) LED Indicator
- Test Switch
- Operating Range 50-140 degrees F
- Warranty: 2-5 Years
- UL Listed
|
- Converts Fluorescent Fixtures to Emergency Lighting
- Provides 1.5 Hour Illumination for Single or Double Lamps
- Completely Self-Contained Inside or Above Lighting Fixture
|
| |
| Height: |
1.5" |
| Width: |
9.5" |
| Depth: |
2.3" |
|
| |
|
| |
Factory Options
| -TMK |
Top Mount Kit |
| -FC |
Flex Cord |
| -RTSK |
Remote Test Switch Kit (EFB Series) |
|
| |
